X-RHex: A Highly Mobile Hexapedal Robot for Sensorimotor Tasks

Kevin C. Galloway*, G. C. Haynes†, B. Deniz Ilhan†,
Aaron M. Johnson†, Ryan Knopf*, Goran Lynch†,
Benjamin Plotnick†, Mackenzie White†, and D. E. Koditschek

*: Mechanical Engineering and Applied Mechanics, University of Pennsylvania, 220 S. 33rd St., Philadelphia, PA 19104
†: Electrical and Systems Engineering, University of Pennsylvania, 200 S. 33rd St., Philadelphia, PA 19104

Penn ScholarlyCommons | Full PDF

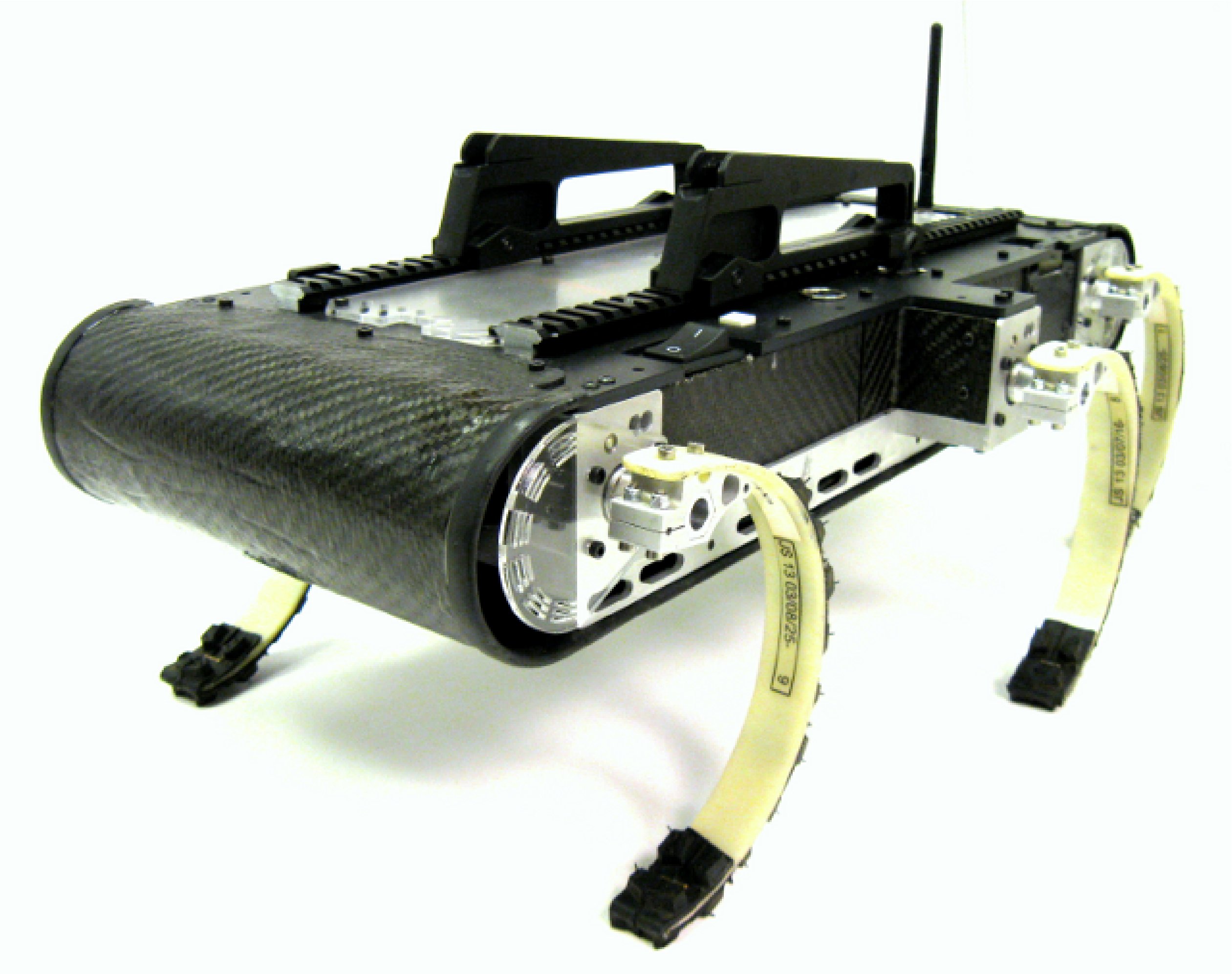

X-RHex
X-RHex
Abstract
      We report on the design and development of X-RHex, a hexapedal robot with a single actuator per leg, intended for real-world mobile applications. X-RHex is an updated version of the RHex platform, designed to offer substantial improvements in power, run-time, payload size, durability, and terrain negotiation, with a smaller physical volume and a comparable footprint and weight. Furthermore, X-RHex is designed to be easier to build and maintain by using a variety of commercial off-the-shelf (COTS) components for a majority of its internals. This document describes the X-RHex architecture and design, with a particular focus on the new ability of this robot to carry modular payloads as a laboratory on legs. X-RHex supports a variety of sensor suites on a small, mobile robotic platform intended for broad, general use in research, defense, and search and rescue applications. Comparisons with previous RHex platforms are presented throughout, with preliminary tests indicating that the locomotive capabilities of X-RHex can meet or exceed the previous platforms. With the additional payload capabilities of X-RHex, we claim it to be the first robot of its size to carry a fully programmable GPU for fast, parallel sensor processing.
More Information
X-RHex Information Page
BibTeX entry
@techreport{tr:kod-xrhex-2010,
  author       = {Kevin C. Galloway and G. C. Haynes and B. Deniz Ilhan and
                  Aaron M. Johnson and Ryan Knopf and Goran Lynch and
                  Benjamin Plotnick and Mackenzie White and D. E. Koditschek},
  title        = {X-RHex: A Highly Mobile Hexapedal Robot for Sensorimotor Tasks},
  institution  = {University of Pennsylvania},
  year         = {2010}
}
Errata
On page 10, the last three columns of Table 3 should be:
AttributeResearch RHexX-RHex 18:1X-RHex 28:1
Heat Coefficient Core °C/(Nm)²13.512.15.00
Listed Heat Coefficient Case °C/(Nm)²61.011.44.72
Measured Coefficient Case °C/(Nm)²22.613.25.45
